Introduction: Audio phone Jack Series

Bore Ø : 2.5 mm, 3.5 mm, 6.3 mm Available

Profile: DIP, SMT, Low Profile Available

Other variants on request.

Introduction: DC Power Jack Series

Pin Ø : 1.3mm, 1.65mm, 2.0mm, 2.5mm Available

Profile: DIP, SMT, Low Profile Available

Other variants on request.

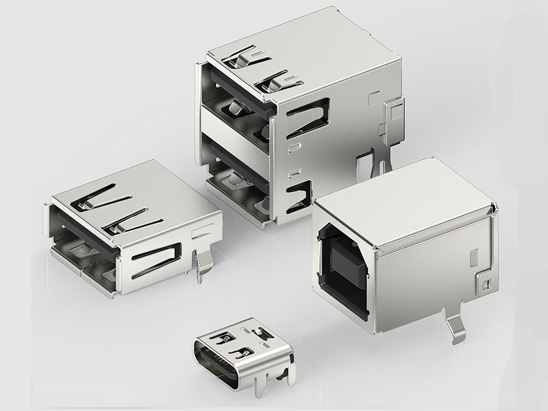

Introduction: USB Series Receptacles: 2.0 ~3.1~USB-C

Connection type: Female / Male. Single ~ dual.

Mounting: SMT / DIP ~ Horizontal / Vertical / Mid.

Selected products with USB-IF Certification..

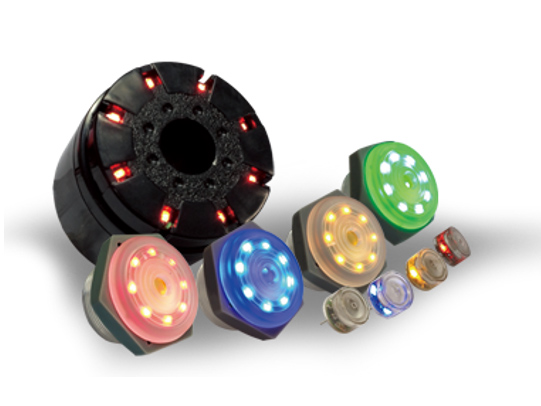

Introduction: Flash Buzzer Series – PF-PK-PKD-PL

Electrical type: DC Type (Pin), DC Type (Wire) AC/DC Type (Pin).

Typical Ø : 12mm ~ 55mm Available.

Various LED Colours,

Operation: Flashing or constant lit, intermittent sound synchronised wit the flash.

Other variants on request.

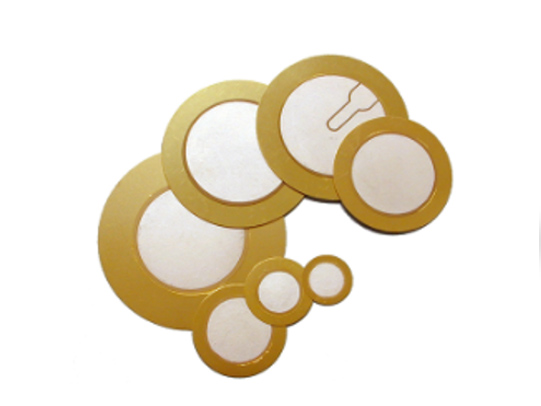

Introduction: Piezo Electric Ceramic Element. – MZ Series

One side No Feedback / One side Feedback.

External drive type element.

Typical Ø : 12mm ~ 55mm Available.

             Ø : 12mm ~ 35mm Available.

Electrical: Input voltage – 30 Vp-p (Max)

Typical Resonant Frequency: 0.8KHz ~ 6.5KHz /29KHz

Other variants on request.

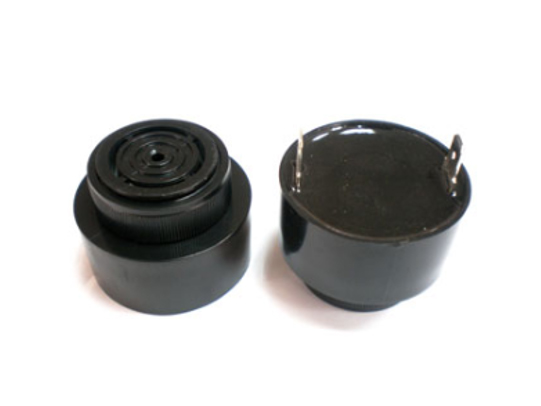

Introduction: Buzzer / Sounder Series

Electrical type: DC Type (Pin), AC Type (Pin) SMD Type..

Various sizes and Frequencies.

Operating Voltage: 1 – 20 Vp-p.

Current consumption- ref short form catalogue.

Other variants on request.
