POWER ENTRY MODULES

If you require any other classification or variation product, please complete the contact form using the button below or contact us directly.

REQUEST INFO

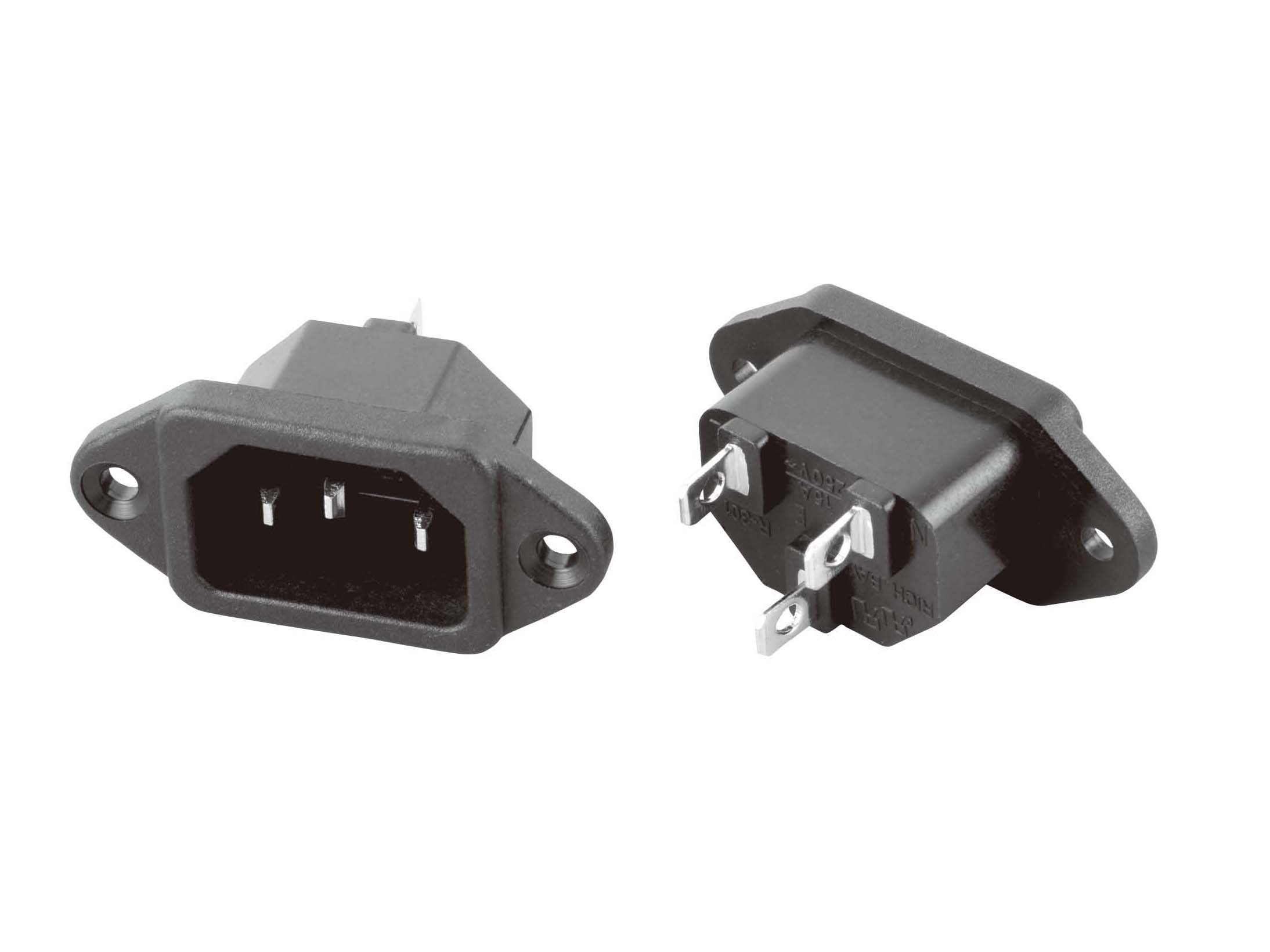

Introduction: R301 Series

Standard: IEC 60320 C14/C18/C20

Various designs, Flange/ Snap-in
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

PDF (C14 SNAP-IN INLET) PDF (C14 FLANGED) PDF (C18 INLET FIXED) PDF (C20 SNAP-IN) PDF (C20 FLANGED)
R 3015 male and female components

Introduction: R3015 – R3016 Series

Standard: IEC 60320 C14 + Fusedraw

Various designs, Flange/ Snap-in
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

pdf (flanged) pdf (snap-in)

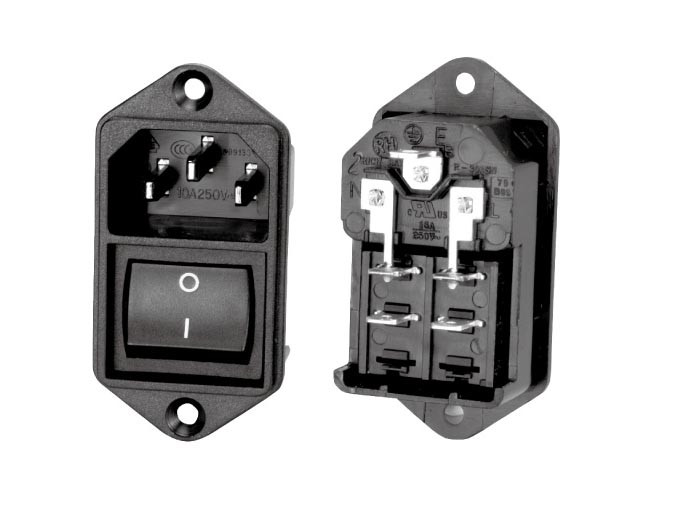

Male and female versions of the R301SN79 components

Introduction: R301SN(79) – R301SN(61) Series

Standard: IEC 60320 C14 + Switch

Various designs, Flange/ Snap-in
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

pdf (flanged) pdf (snap-in)

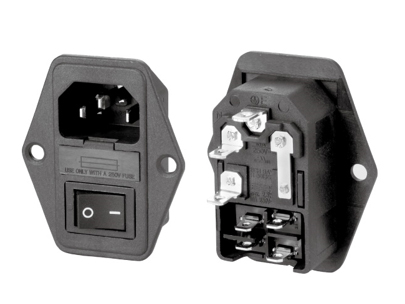

R3013S components

Introduction: R3013S

Standard: IEC 60320 C14 + Switch + Fusedraw

Various designs, Flange/ Snap-in
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Illuminated Rocker switch: Red or Green
Housing Material: Thermoplastic 94V-2~V-0

PDF (FLANGED)

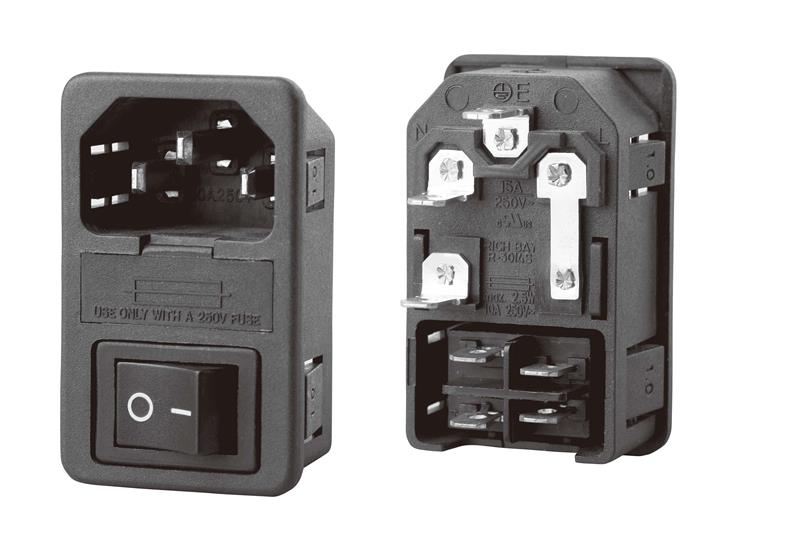

Introduction: R3014S

Standard: IEC 60320 C14 + Switch + Fusedraw

Various designs, Flange/ Snap-in
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Illuminated Rocker switch: Red or Green
Housing Material: Thermoplastic 94V-2~V-0



PDF (SNAP-IN) PDF (LEGEND)

Introduction: R302G Series for PDU/UPS

Standard: IEC 60320 .F.

Various designs, and Snap-in’s
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

PDF

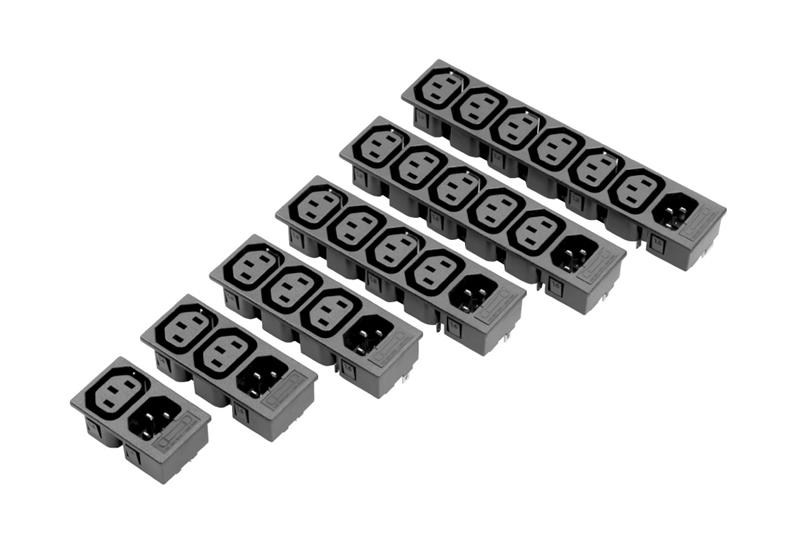

R302G Series

Introduction: R302G Series for PDU/UPS

Standard: IEC 60320 .C14 + Fusedraw, F Outlet.

Various designs, and Snap-in’s
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

PDF

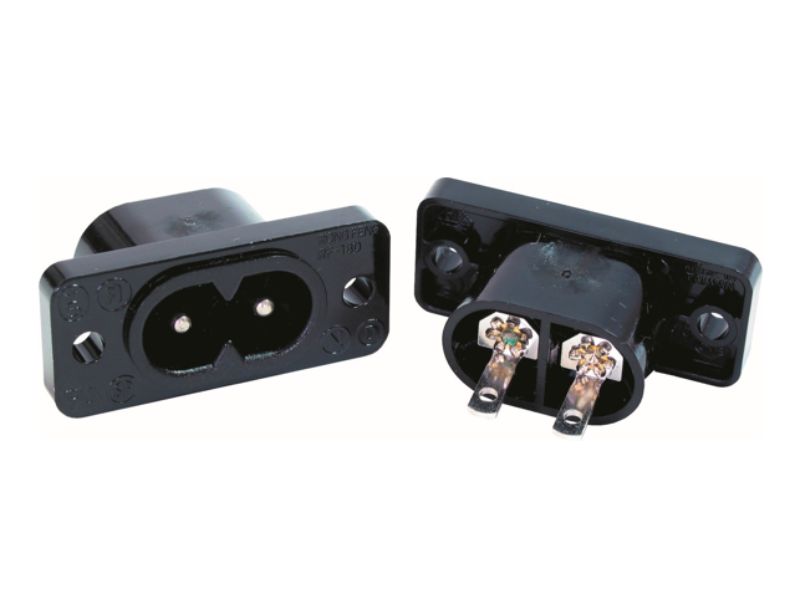

RF-180 Series power entry module on a white background

Introduction: RF-180 Series

Standard: IEC 60320 C8

Designs, Flange, snap-in, PCB Mount.
Rating: 2.5A 250V AC.

Approvals: VDE, cULus, CCC.

Housing Material: Thermoplastic 94V-2~V-0



RF-180 RF-180-I RF-180-V

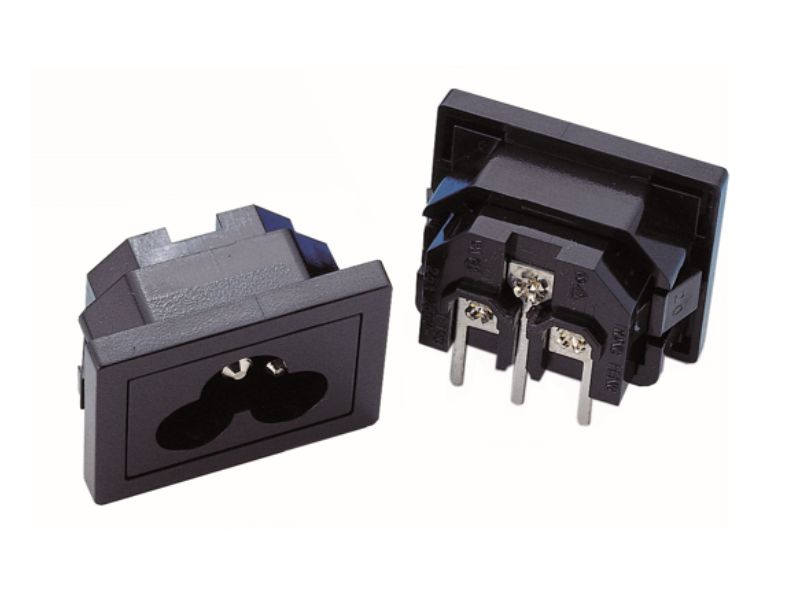

RF-190 Series power entry module on a white background

Introduction: RF-190 Series

Standard: IEC 60320 C6

Designs, Flange, Snap-in, PCB Mount.
Rating: 2.5A 250V AC

Approval: VDE, UL, CCC
Housing Material: Thermoplastic 94V-2~V-0



RF-190-B RF-190-QA

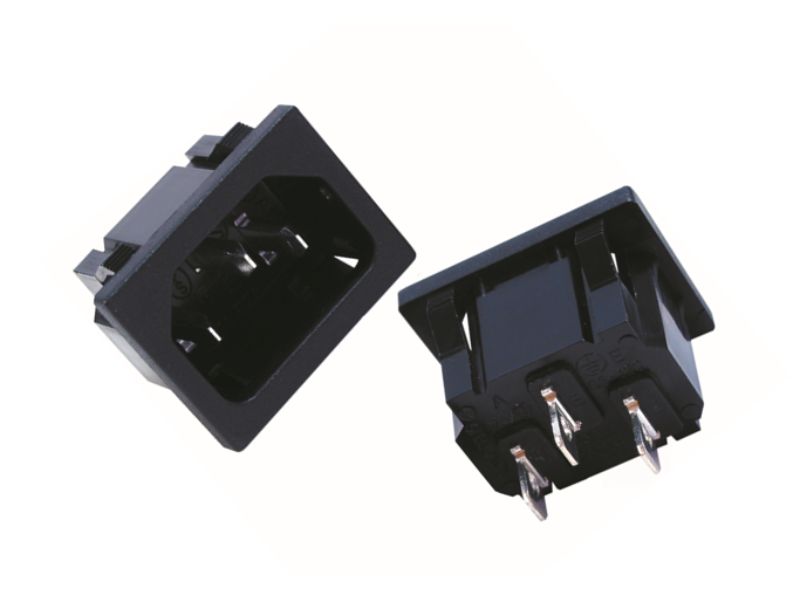

SS-120 Series power entry module on a white background

Introduction: SS-120 Series

Standard: IEC 60320 C14 Inlet

Design, Flanged, Snap-in, PCB Mount.
Rating: 15A 250V AC / 10A 250V AC

Approvals: VDE, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



SS-120=X.X

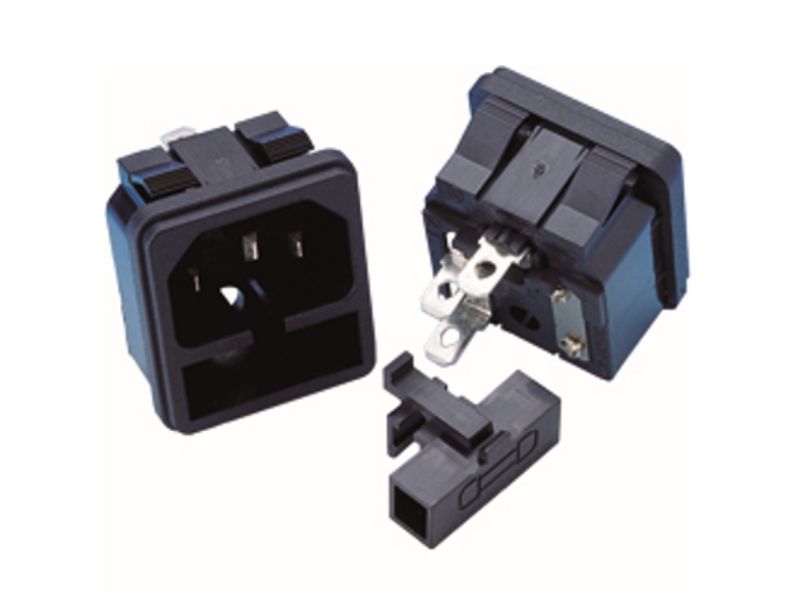

RF-2004 Series power entry module on a white background

Introduction: RF-2004 Series

Standard: IEC 60320 C14 + IEC 60127 Fusedraw

Various designs, Flange/ Snap-in – Single fuse, 5x20mm
Rating: 15A 250V AC / 10A 250V AC

Approvals: TUV, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



RF-2004 RF-2004-X.X RF-2004-C

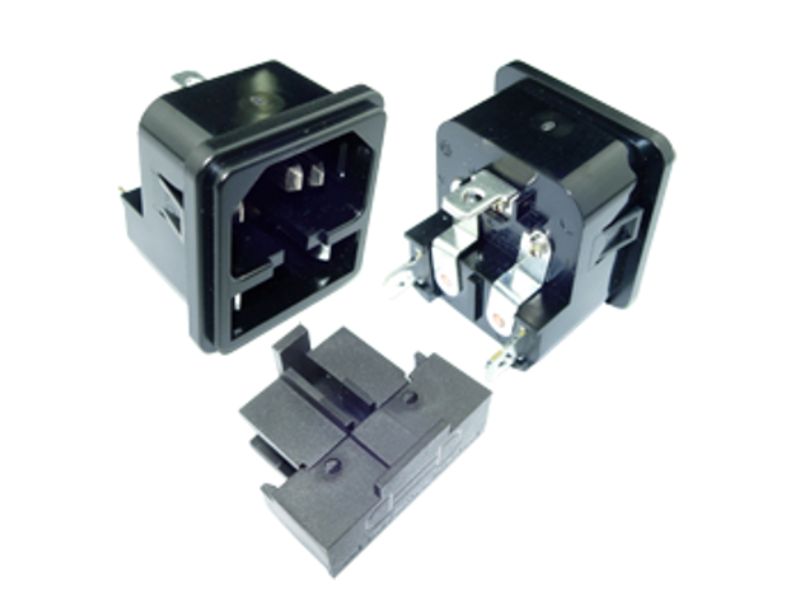

RF-2004D Series power entry module on a white background

Introduction: RF-2004D Series

Standard: IEC 60320 C14 + IEC 60127 Fusedraw

Various designs, Flange/ Snap-in – Double fuse, 5x20mm
Rating: 15A 250V AC / 10A 250V AC

Approvals: TUV, cULus.
Housing Material: Thermoplastic 94V-2~V-0



RF-2004D-X.X

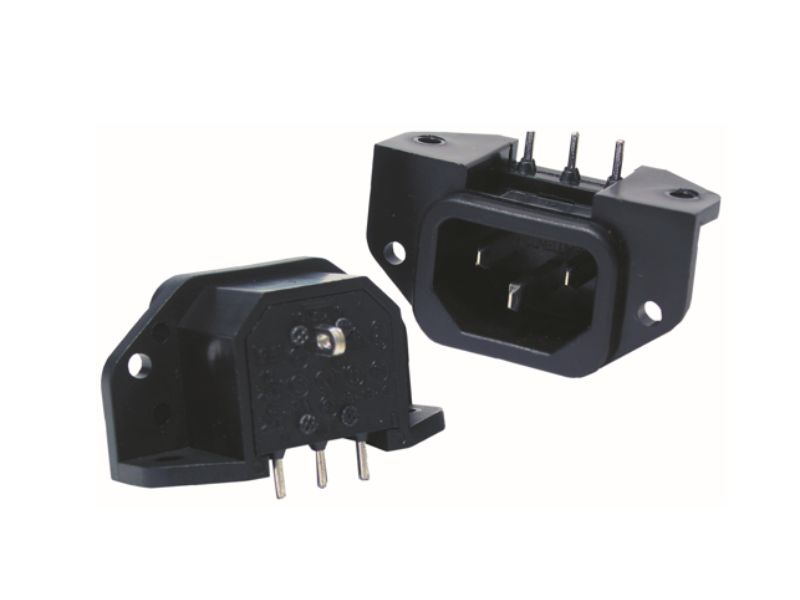

SS-7B Series power entry module on a white background

Introduction: SS-7B Series.

Standard: IEC 60320 .C14.

Various designs, Flange and Snap-in. PCB Mount. Horizontal
Rating: 15A 250V AC / 10A 250V AC

Approvals: VDE, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



SS-7B-1-M9 SS-7B-1-P7Nut

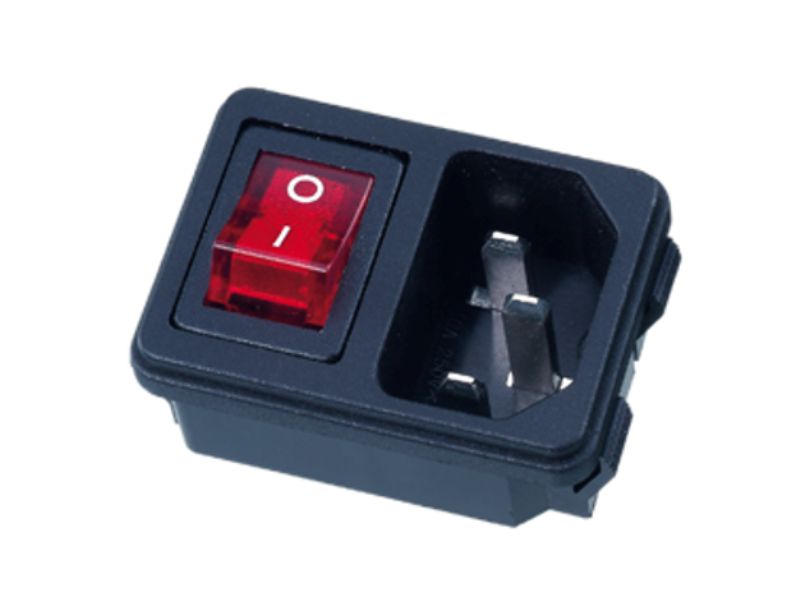

SS-120+RF-1003 power entry module on a white background

Introduction: SS-120+RF-1003

Standard: IEC 60320 C14 + Switch illuminated – Non illuminated – Red / Green

Design, Snap-in
Rating: 15A 250V AC / 10A 250V AC

Approvals: VDE, UL, CSA, CCC.
Housing Material: Thermoplastic 94V-2~V-0



ss-120+rf-1003 SS-120-BEL Series
RF-2004 + RF-1003 power entry module on a white background

Introduction: RF-2004 + RF-1003

Standard: IEC 60320 C14 + Switch + Fusedraw.

Illuminated – Non-illuminated, Red / Green

Design, Snap-in,
Rating: 6.3A 250V AC / 10A 250V AC

Approvals: TUV, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



rf-2004-rf-1003

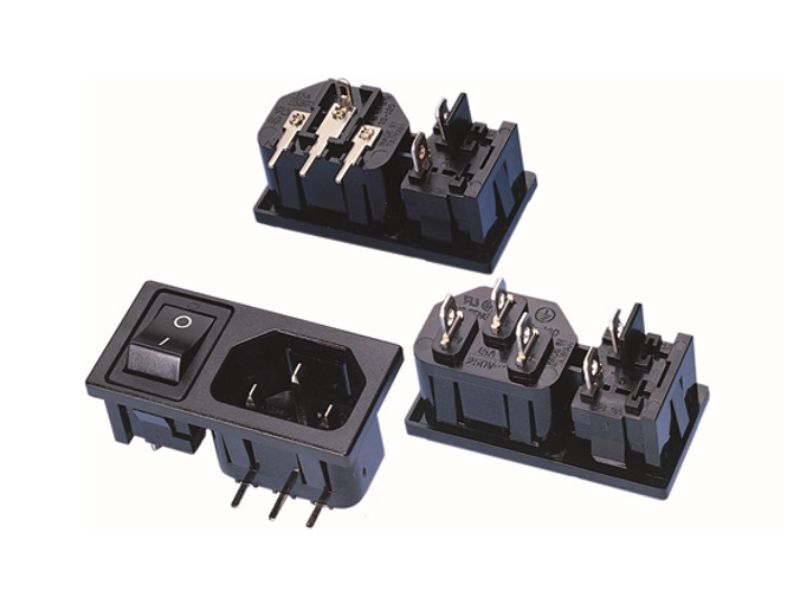

RF-2001A, RF-2001C power entry module on a white background

Introduction: RF-2001A, RF-2001C

Standard: IEC 60320 C14 + Switch.

Illuminated – Non-illuminated, Red / Green

Design, Snap-in,
Rating: 6.3A 250V AC / 10A 250V AC

Approvals: VDE, UL, CSA, CCC.
Housing Material: Thermoplastic 94V-2~V-0



RF-2001A RF-2001C

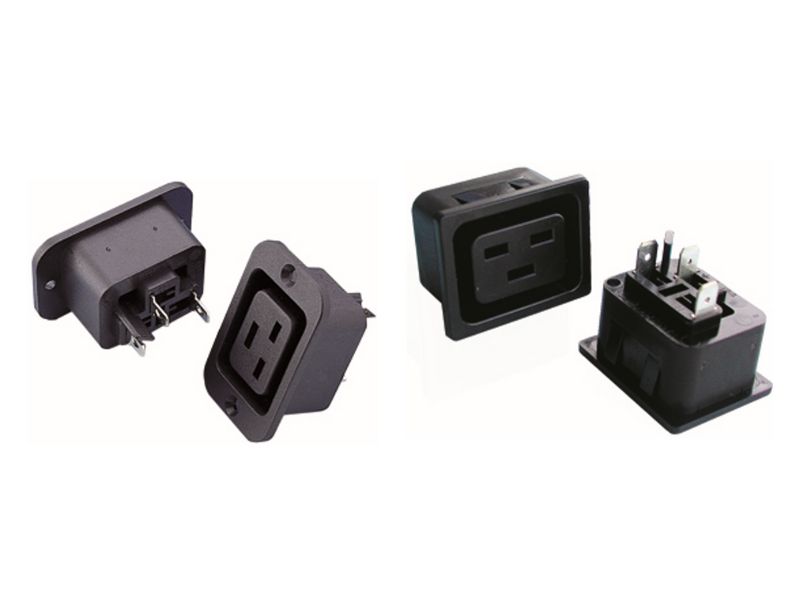

SS-3C / 3D Series power entry module on a white background

Introduction. : SS-3C / 3D Series

Standard: IEC 60320 .J Outlet

Designs, Flange / Snap-in
Rating: 20A 250V AC / 16A 250V AC

Approvals: TUV, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



SS-3C SS-3D

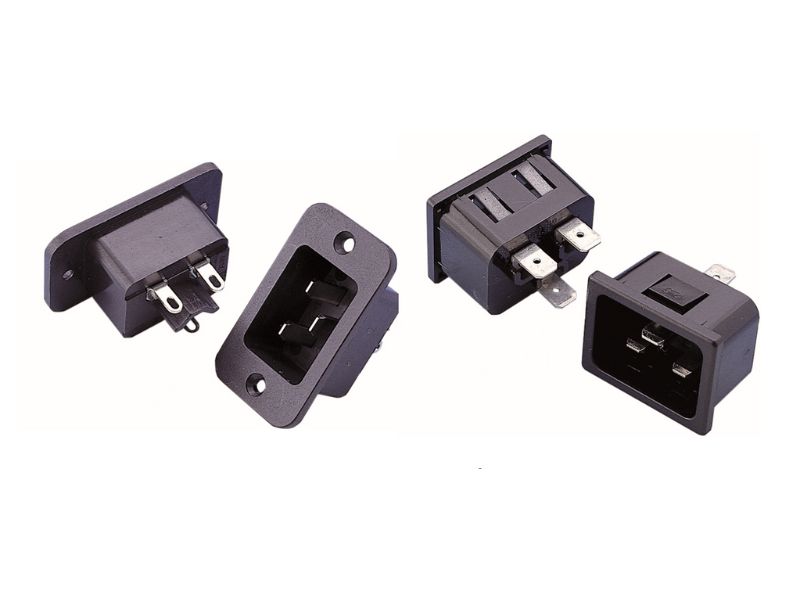

SS-3A / B Series power entry module on a white backround

Introduction: SS-3A / B Series

Standard: IEC 60320 .C20.

Designs, Flange / Snap-in.
Rating: 20A 250V AC / 16A 250V AC

Approvals: VDE, TUV, cULus, CCC.
Housing Material: Thermoplastic 94V-2~V-0



SS-3A SS-3B
