Introduction: Pin Header connector
Pitch 0.8mm / 2.54mm
Current Rating: 0.8 Amp – 3.0 Amp
Insulator Resistance: 800 Megohms Min -5000 Megohms Min.
Dielectric Withstanding: AC 500V / 1000V
Operating Temperature: -40℃ ～ +105℃
Contact Material: Copper Alloy
Insulator Material: High Temperature, Thermoplastic. UL 94V-0
Standard: Nylon-6T / PBT.
Finish: Gold Plated
Standard: Gold Flash all over
Introduction: Female Header connector
Pitch 0.8mm / 2.54mm
Current Rating: 0.8 Amp – 3.0 Amp
Insulator Resistance: 800 Megohms Min – 5000 Megohms Min
Contact Resistance: 20 m ohm Max.
Dielectric Withstanding: AC 500V / 1000V
Operating Temperature: -40℃～+105℃
Contact Material: Phosphor Bronze
Insulator Material: High Temperature, Thermoplastic 94V-0
Standard: LCP
Finish: Gold Plated
Standard: Gold Flash all over
PDF (7.3MB)
Introduction: FFC / FPC
Pitch 0.30mm / 1.0mm
No. Of Contacts: 13~73
Type of Entry: Top ,Bottom.
Electrical Rating: 0.2amp@30V / 0.4amp@50V AC/DC.
Operating Temperature: -55℃～+85℃
Contact Material: Phosphor Bronze / LEG – Brass
Housing Material: LCP 94V-0 Natural
Actuator Material: LCP 94V-0 Black
Contact: Matte Tin or Gold plated Nickel.
LEG: Matte Tin plated over Nickel.

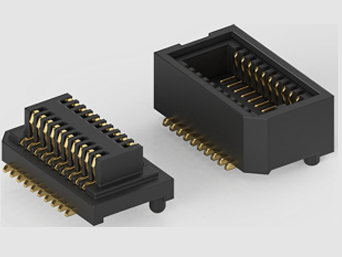

Introduction: Board to Board Connector
Pitch 0.50mm / 0.80mm
Terminal Type: SMT
No. of Contacts: 20~100
Current: 0.5amp@50V
Operating Temperature: -20℃～+105℃
Housing Material: Nylon-9t – UL94V-0 Black
Contact Material: Copper Alloy
Contact Plating: Gold Flash
Introduction: Box Header Series
Pitch 1.27mm / 2.54mm
Terminal Type: Straight, R/A – SMT
No. of Contacts: 06~68
Current: 1.0amp – 3.0amp
Operating Temperature: -40℃～+105℃
Housing Material: Nylon-9t – UL94V-0 Black
Contact Material: Copper Alloy
Contact Plating: Gold Flash

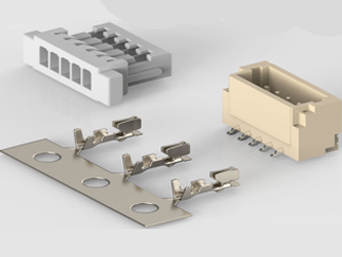

Introduction: Wire to Board Connector
Pitch 0.80mm / 8.90mm
Terminal Type: SMT
No. of Contacts: 20~100
Current: 0.7amp@30V – 25amp@250V
Operating Temperature: -25℃～+85℃
Housing Material: Nylon-9t / 66 – UL94V-0 Beige
Contact Material: Brass
Contact Plating: Tin plated Nickel.

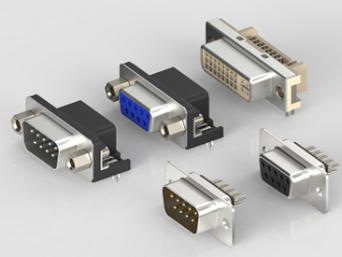

Introduction: DVI & D-SUB Series
Type: Solder, DIP Straight, DIP Right Angle
Number of Contacts: 09,15,25,26,37,44,62
Type of Contacts: Male, Female
PDF

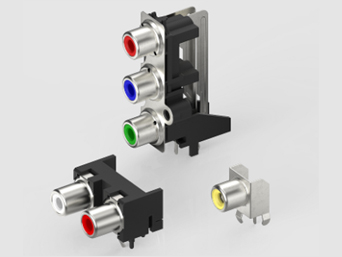

Introduction: RCA Jack Series
Type: Right angled, Vertical/Horizontal Board mount.
Number of ports: Single, Dual or ganged (6).
Colours Ports: Yellow, Red, White, Green, Blue or Red
PDF

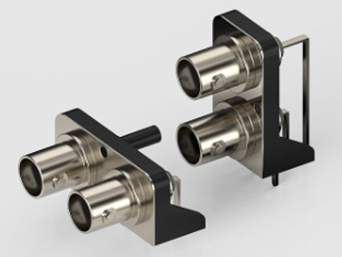

Introduction: BNC Connector Series
Voltage rating: 500V AC
Current rang: 5 Amp
Temperature range: -40°C~+85°C
Nominal impedance: 50 or 75 ohms
Frequency Range: 0~4GHz (50 ohm) 0~1GHz (750 ohm)
VSWR(Voltage Standing Wave Ratio): 1.5 Max
PDF (CB102) PDF (CB201) PDF (CB202)
Introduction: Wire Harness Assembly
General assembly, various cable / wire gauge, Connection types available.
Full specifications based on customer request.

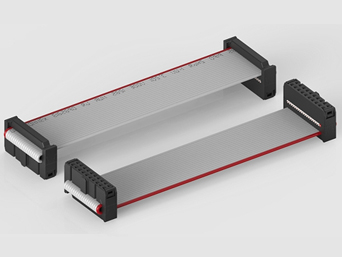

Introduction: Flat / Ribbon Cable Assembly
General assembly, various cable / wire gauge, Connection types available.
Full specifications based on customer request.
Introduction: Cable Assembly
General assembly, various cable / wire gauge, Connection types available.
Full specifications based on customer request
