Super Bright LEDs plus LED Displays

Specialist manufacturer with 32yrs experience in the development of energy saving LED products. Individual PDF’s on request.

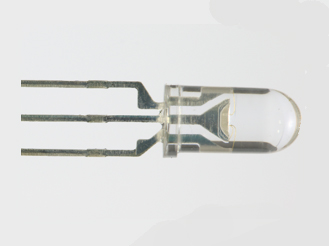

A single multi-coloured LED component

Multi-Colour LED

Thru-hole mount

Emitted Colour types: RGB: Red, Green, Blue.

Bi-Colour: Red/Green, Blue/Green, Red/Yellow, Red/Blue,

Common Anode/ Cathode.

Lens Colour: Water clear, White diffused. Viewing angle: 20–50 degree

pdf

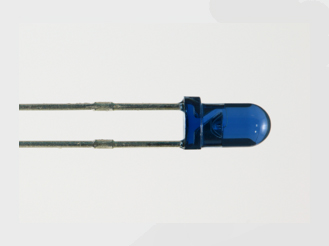

Infrared LED Lamps

Thru-hole mount

Sizes: IR-3mm, 5mm, 6mm, 8mm dia.

Lens Colour: Water clear, Blue transparent.

Viewing angle: 30–45 degree.

pdf
A red oval LED component

Oval LED

Thru-hole mount

Sizes: 3mm, 5mm, 6mm dia.

Emitted Colour: Various colour depending on lens dia.

Viewing angle:

3mm = 110/45 degree.

5mm = 30/70 – 110/40 degree.

6mm = 50/20 – 70/35 degree.

pdf (3mm) pdf (5mm) pdf (6mm)

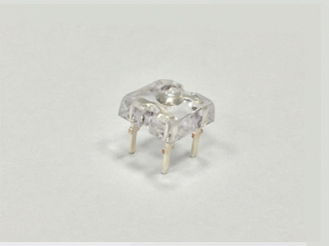

Super Flux LED

Thru-hole mount.

Emitted Colour: Blue, Green, Yellow, Red, White – Warm White

Viewing angle: 40–140 degree.

pdf
An LED component with a numeric display

LED Numeric Displays

Thru-hole mount.

Single, Dual and triple display.

Emitted Colour:  Green, Yellow, Orange Red.

Digit size: 0.3”, 0.36”, 0.4”, 0.5”, 0.56”, 0.6”, 0.8” and 1.0”.

Common-Anode/Cathode.

pdf

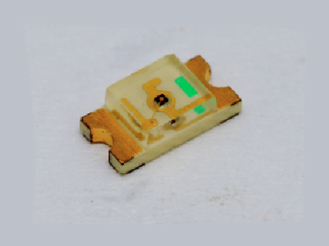

Surface mount chip LED – PCB

SMD.

Size: 1206, 0805, 0603, 1204, 1210.

Illumination single – Bi-colour

Emitted colour: Red, Green, Yellow, Blue and Orange.

Various material types.

pdf
